MDX/MDM4 Tempered Glass Lens Kit (Ultra Clear)

This is a 26.4 x 1.6 mm Tempered and AR Coated (UCL) Glass Lens for the MDX Head and MDM4 Adapter. Visible Light Transmissibility is 98%.

• This lens is chemically strengthened, aka chemically tempered, as opposed to heat tempered.
• It is 4-5x stronger than float glass.
• High temperature resistance compared to standard acrylic lenses.
• It is more scratch resistant that float glass.
• The AR coating allows for 98% transmissibility compared to 90-92% of float glass.

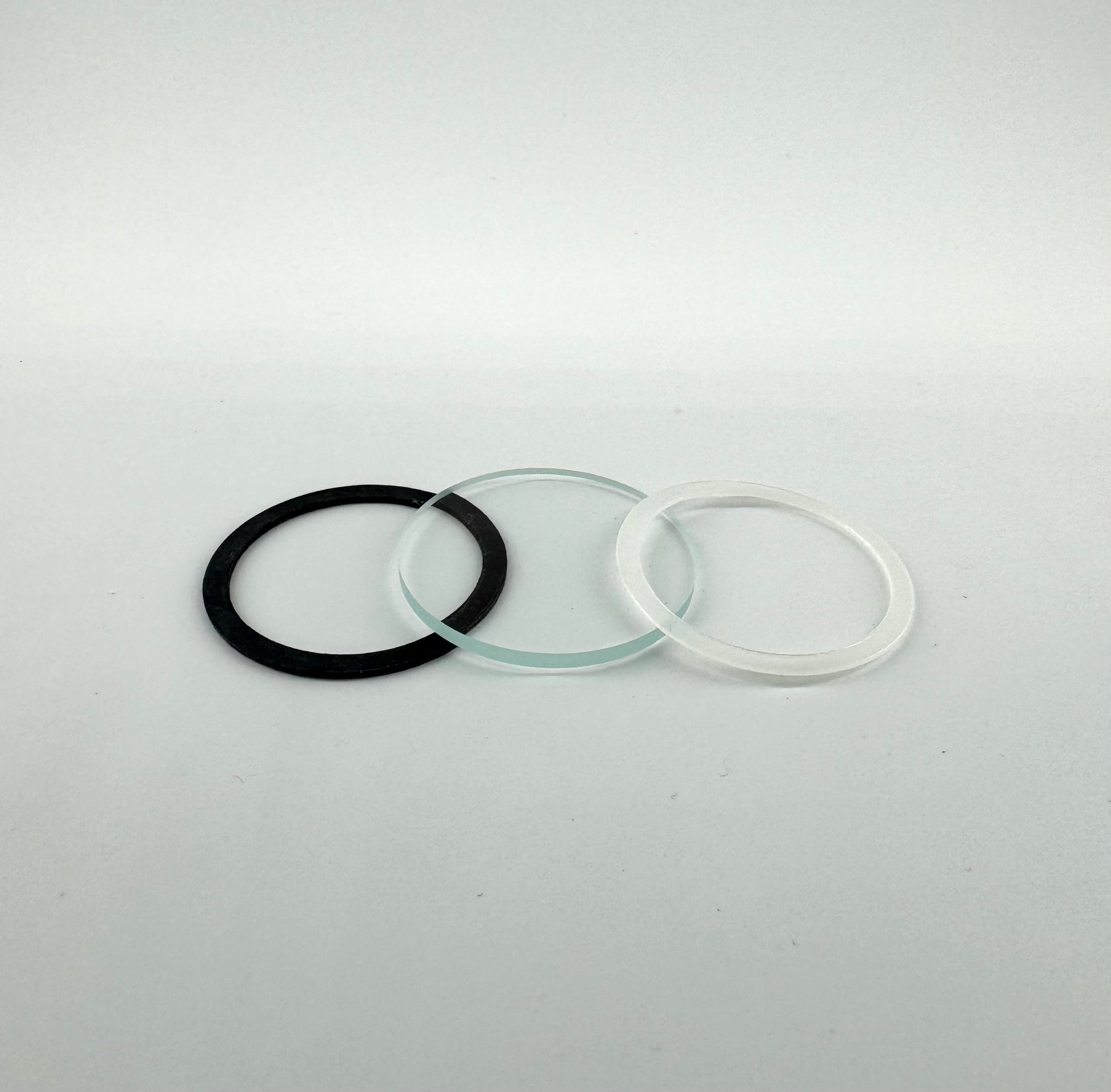

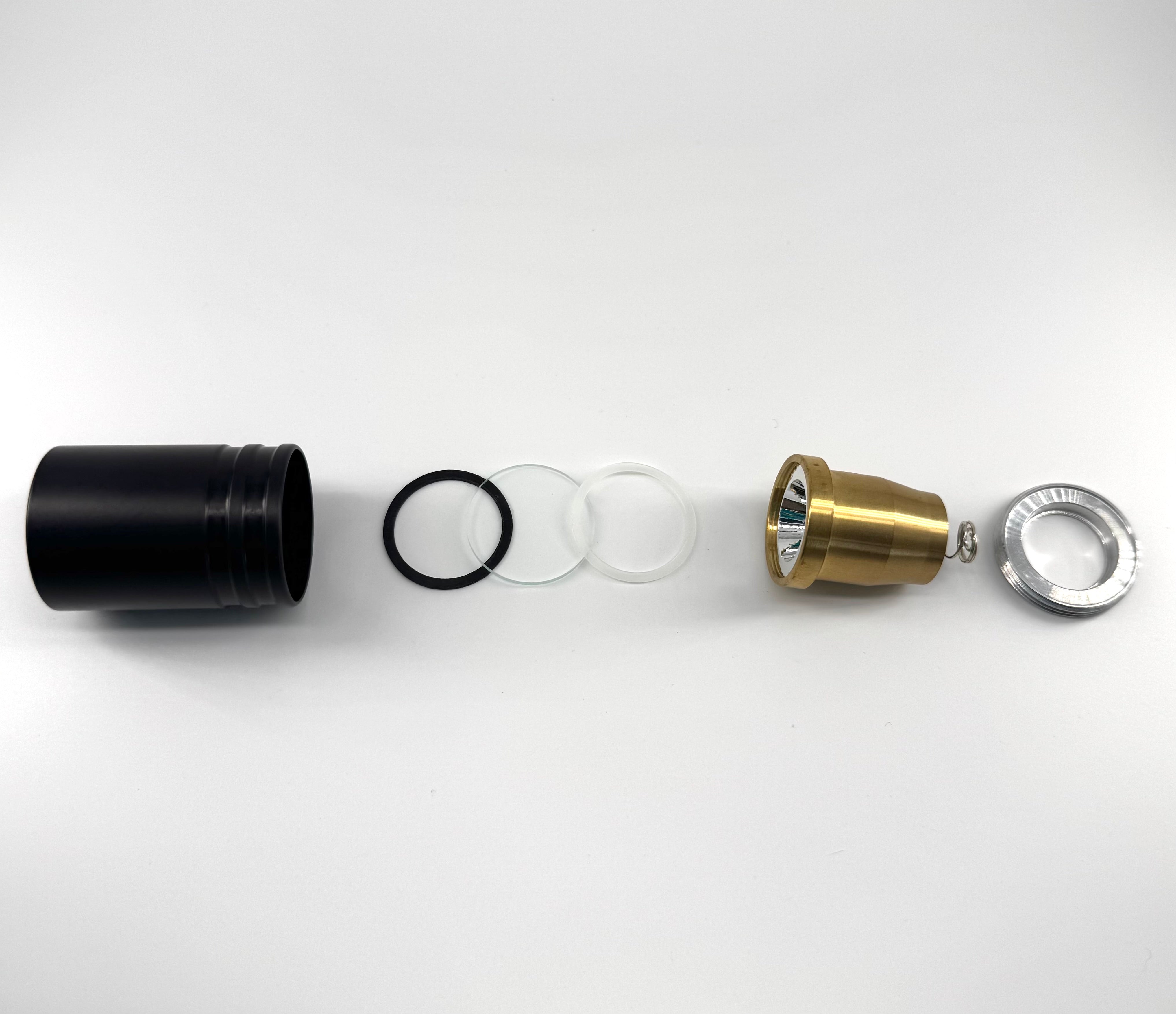

This kit includes the front black neoprene seal, the lens, and the rear white nylon bearing washer. The front rim of the M-Series Dropin bears against this white washer. The order of assembly is illustrated in second the picture.

Things To Know Before Purchase:

• This kit does NOT Include a MDX Head, Dropin, or Retaining Ring. They are only shown in the picture for clarity of assembly.
• You Will Need a MDX Head Wrench or suitable tool for installation of this lens. The use of improper tools can result in damage to the head. The MDX Head Wrench can be purchased HERE
• This Lens is NOT Covered by our warranty. Even though it is tempered for hard use. It can be broken.

This Video Shows the General Assembly of the MDX Head and is Recommended Viewing Prior to Installing the Lens Kit. It Does NOT Show the Particular Assembly of This Lens Kit. (You Will Need to Install the Nylon Washer Behind the Lens)
