MDX-M91B Head

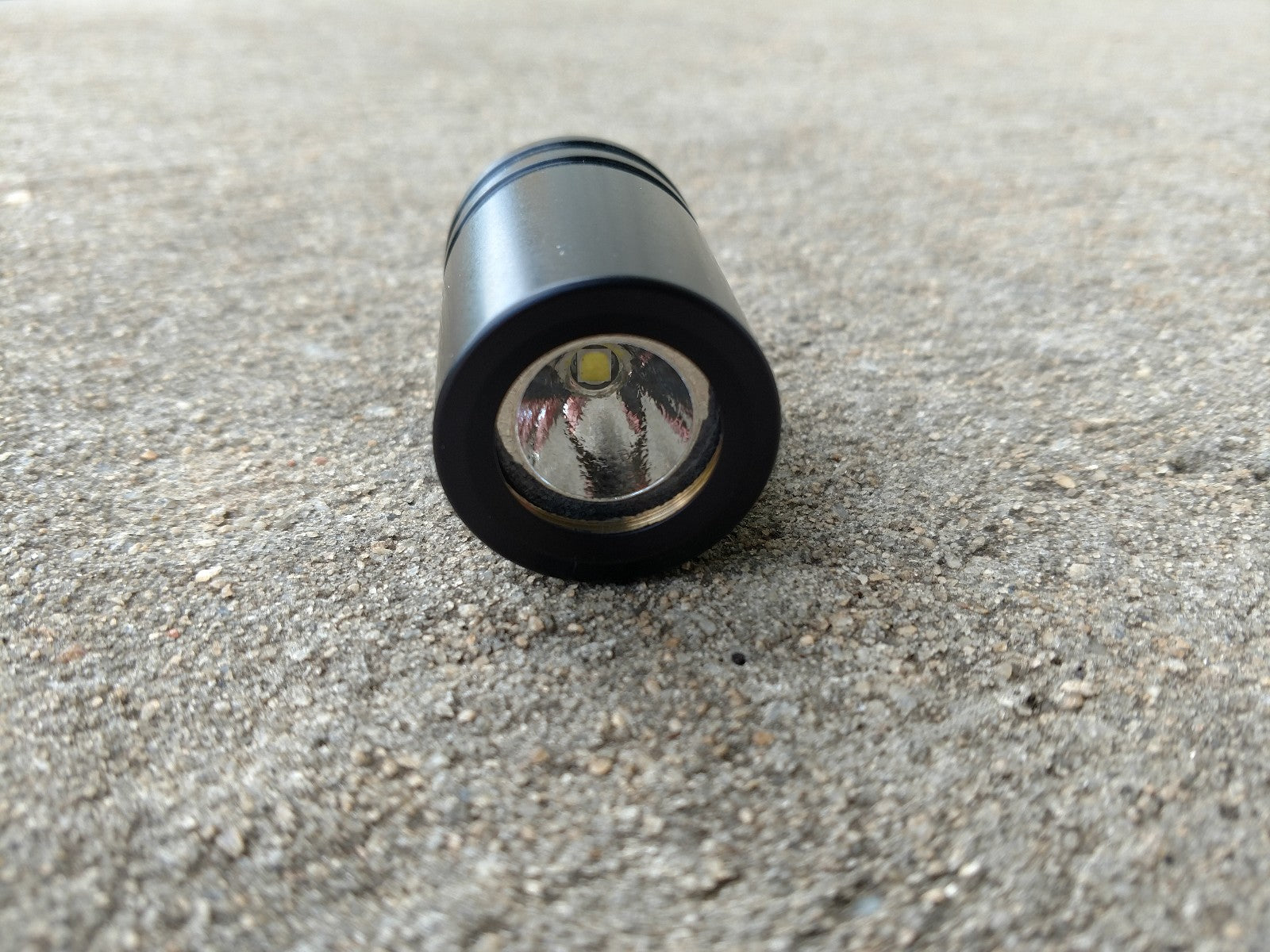

This is the Malkoff Devices M91B preloaded in a MDX Head.  The output is 1000 Measured Out the Front Lumens.

If the optional H/L Switch is installed (see Options above), the High/Low is controlled by head rotation.  The low output is approximately 30 lumens with three CR123A Batteries installed.  The On/Off switch is a forward clicky with momentary function.

Compared to purchasing components separately.

The output is approximately 1100 measured out the front lumens at turn on and 1000 continuous.  The Lux is approximately 8500 at one meter.  The current draw is approximately 1400ma at 9 volts. The full output runtime is approximately 30-45 minutes on three CR123 primary batteries with a nice long taper as voltage drops. It will easily illuminate objects at 200+ feet and will blind opponents within a 100 foot radius. The LED is a Cool White (5700K) Cree XP-L.

This design utilizes a custom orange peel reflector designed by Don McLeish.  The reflector offers a very nice balance between throw and spill.  It is an outstanding room lighter and short to medium spotter. It was designed specifically for use in the Malkoff MDX-16.5 Head with the Malkoff MDX3 and MDX4 Bodies. The input voltage is 5.5 - 12 volts. Below 5.5 volts it will drop out of regulation.  This dropin is protected against reverse polarity.

This Malkoff Upgrade is designed for rugged service from the ground up.  It is fully potted to stand up to rough service and recoil.  This item is covered by Our Lifetime Warranty.

Full specifications for the M91B can be found HERE.

MDX/MDM4 Tempered Glass Lens Kit (Ultra Clear): The tempered glass kit will be installed if purchased on this page. This is a 26.4 x 1.6 mm Tempered and AR Coated (UCL) Glass Lens for the MDX Head. Visible Light Transmissibility is 98%. This lens is chemically strengthened, aka chemically tempered, as opposed to heat tempered. High temperature resistance compared to standard acrylic lenses. It is more scratch resistant that float glass. Sold HERE.

Made in the USA. Some parts not domestically sourced.

WARNING: This light is capable of causing eye damage at close range. Please use the light responsibly!!!
