MDC XPL 16650 EZP Flashlight

Malkoff MDC XPL EZP (Easy Programmable) 16650 (2CR123 sized) Flashlight. This flashlight can be reprogrammed to use different combinations of the Low, Medium, and High modes. The full output runtime on a 2000-2500mah 16650 battery is approximately 45min to 1 hour. The full output runtime on 2x CR123 is approximately 30-45 minutes. The LED is a Cool White (5700K) Cree XP-L or a Neutral White (4000K 80 CRI) Cree XP-L.

APPROXIMATE OUTPUTS AND DRAWS AT VARIOUS VOLTAGES

*Below 3.6 volts the flashlight will slowly taper in output. Low Voltage Protection (fast taper) doesn't start until 3 volts. Below 2.7 volts the flashlight will turn itself off. The use of an unprotected cell entails additional risks.

**Actual highest output is dependent on the internal resistance of the battery. The use of an unprotected cell entails additional risks.

The Flashlight consists of a MDC 16650 Handheld Body and a MDC XPL V3 EZP Head. The body is one piece with a McClicky Switch and Black Nitride Stainless Steel Pocket Clip Installed. The options for the Pocket Clip may be chosen with the buttons above. It DOES NOT have a removable tailcap.

It is constructed of 6061 T6 Aluminum and is HA Black Type III Hard Anodized. This design utilizes a custom orange peel reflector designed by Don McLeish. The reflector offers a very nice balance of throw and spill. It is an outstanding room lighter with short to medium reach. Great for lighting treetops from ground level.

The body is designed for a single protected 16650 rechargeable battery. We encourage the use of protected batteries for overall safety. However, for maximum output, we also carry an unprotected, low internal resistance high discharge 16650 battery. Sold HERE. The use of an unprotected cell entails additional risks. A charger for both batteries is sold HERE.

It will also work with two CR123 primary batteries, with a slightly reduced output.

The optional Titanium Deep Carry MDC Pocket Clips are custom designed and manufactured by LynchNW exclusively for the Malkoff Devices line of MDC Pocket Lights. They are made of Grade 5 6AL-4V Titanium with a Stone Washed Finish. These pocket clips prevent the user from standing the flashlight on its tail. Product Page

Flashlight Length ----------- approximately 5 inches

Head Diameter ------------- approximately 1 inch

Body Diameter ------------- approximately 0.89 inch

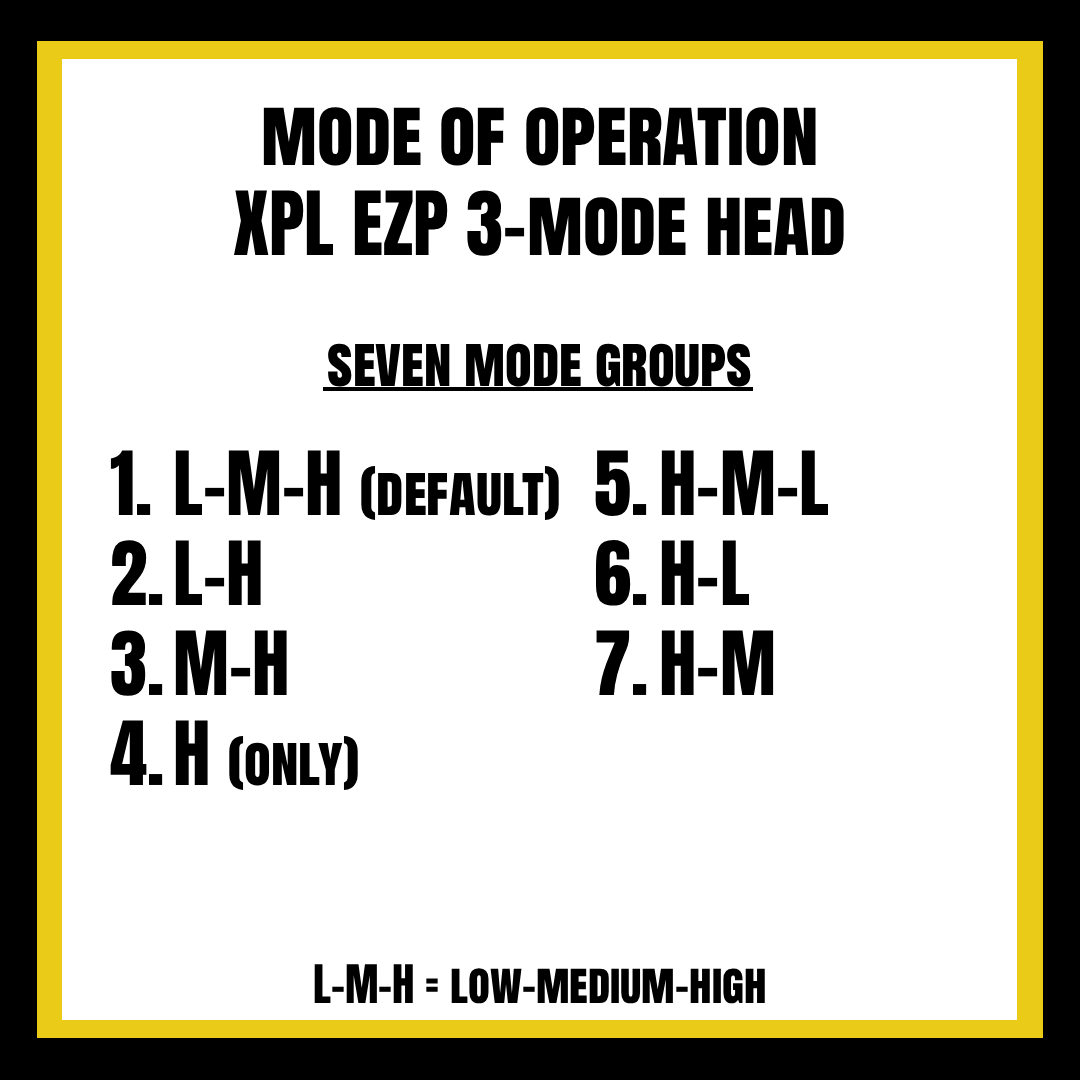

MODE OF OPERATION XPL 16650 EZP 3 MODE HEAD:

The default programming is Low - Medium - High.

MODE GROUPS

1. L-M-H (default)
2. L-H
3. M-H
4. H (only)
5. H-M-L
6. H-L
7. H-M

PROGRAMMING THE LIGHT (watch the video)

• The light is programmed using a series of short and long button presses.
• A short button press is a short momentary (<0.5 second) button press that DOES NOT latch/click the switch.
• A long button press is a long (>0.5 second) button press. In most cases latching the switch is not necessary.
• To enter Programming Mode perform 20 short button presses. It is not necessary to count or be exact. Simply perform short presses until the light begins to fast strobe.
• Hold the long button press. The light will fast strobe for approximately 5 seconds.
• Continue holding the long press. After the strobe, the light will emit single flashes at 2 second intervals.
• Count the number of flashes and release the button when the desired mode group (number of flashes) is reached.
• Releasing the the button during the fast strobe will reset to default (L-M-H).

PROGRAMMING EXAMPLE

• To make your light single mode high only.
• Short press until the light starts strobing.
• Hold the press. Once the strobing stops - Release the button after the 4th flash.

STAINLESS-STEEL BEZEL OPTION

The stainless-steel(SS) bezels fit this head and any MDC head that uses a reflector. If purchased from this screen, the stainless-steel bezel will be installed on the head. The original black-anodized aluminum bezel will be included.

Standard MDC SS Bezel sold HERE.

Crenelated MDC SS Bezel sold HERE.

This item is Covered by Our Lifetime Warranty.

Made in the USA. Some parts not domestically sourced.

Battery Warnings For Rechargeable Li-ion Batteries:

- Do Not over-discharge/overcharge

- Please recharge drained batteries ASAP

- Do Not short circuit

- Do Not dispose of in fire

- Do Not expose to extreme heat or water

- Please be familiar with the handling of rechargeable Lithium-ion batteries prior to their purchase

Battery Warnings:

Lithium Primary and Li-ion Rechargeable Batteries are Inherently Volatile and Dangerous to Store and Use. All Lithium Batteries Introduce the Risk of Fire, Burns, and Explosions. Unprotected cells are by Nature more Dangerous than Protected Cells. You Assume the Responsibility of Educating Yourself About Their Use and Storage Before Purchase! If You are Uncomfortable With This, Do Not Purchase this Light!
