Malkoff Devices

Maglite LED Adapter Universal D&C Size

$73.99
Choose Brass Drop-in:

Choose Brass Drop-in
Quantity:

DESCRIPTION:

This is a Drop-In LED Upgrade Conversion for the old school incandescent Maglite® C and D Sized Flashlights.  The MDMLA will allow you to use our brass bodied dropins in your incandescent Maglite® flashlight.

The Mag Adapter has been updated to simplify installation. It Does NOT have a threaded connection to the Maglite Bulb Stem.

  1. Completely remove the Maglite head from the Maglite body.

  2. Remove the bezel from the Maglite. Be sure to keep the lens and O-ring in the bezel.

  3. Remove the reflector and set aside (you won't need it for this)

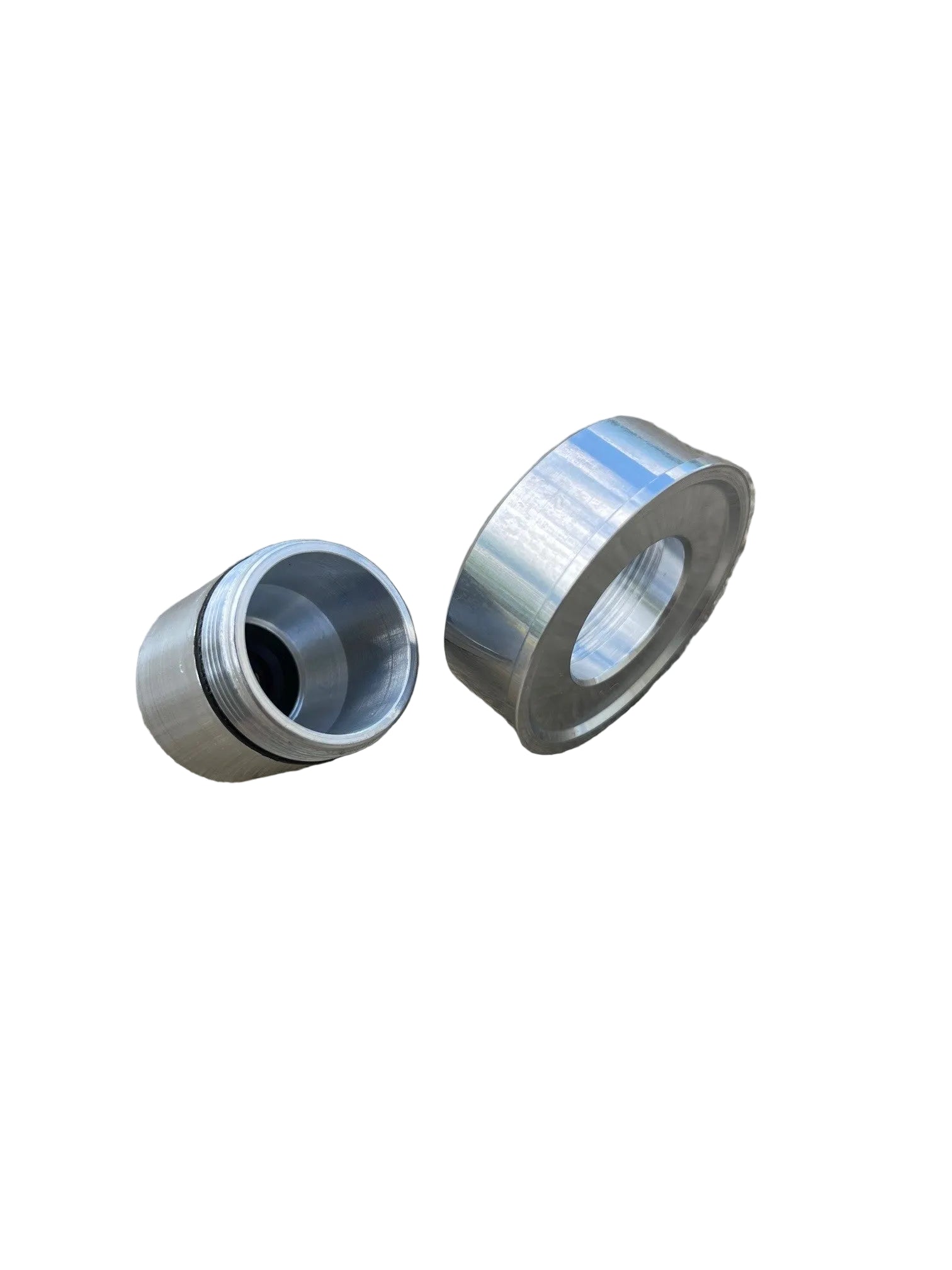

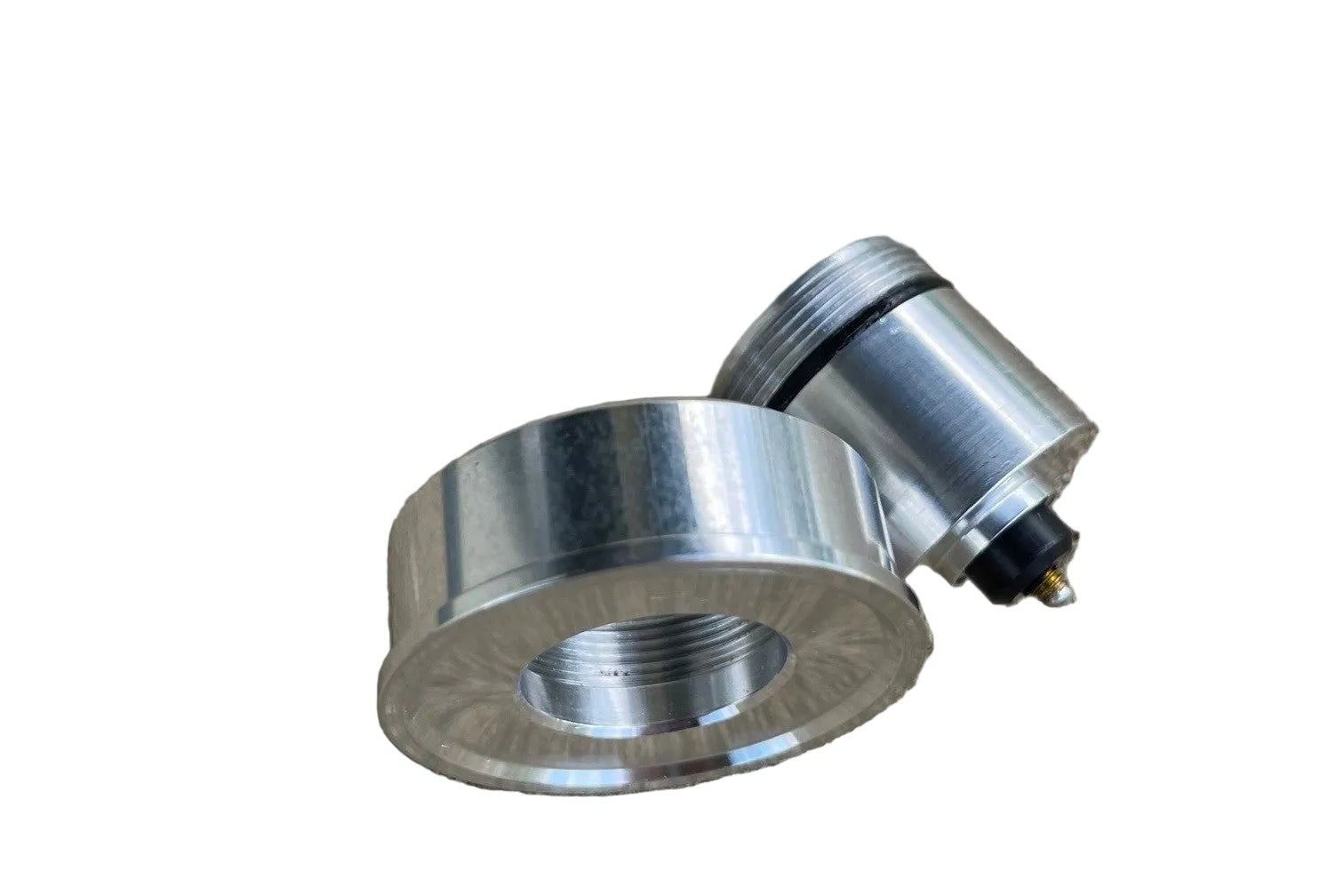

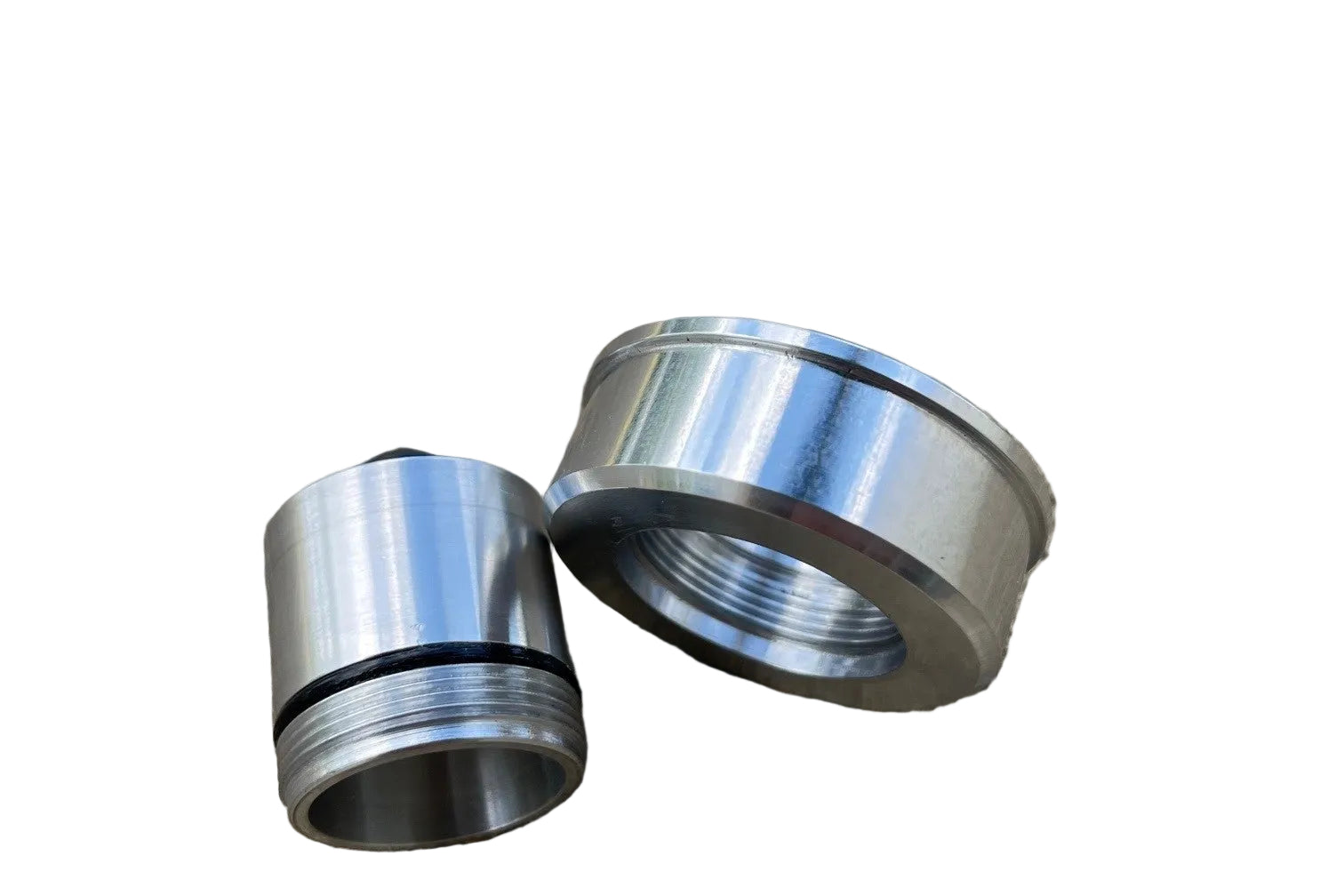

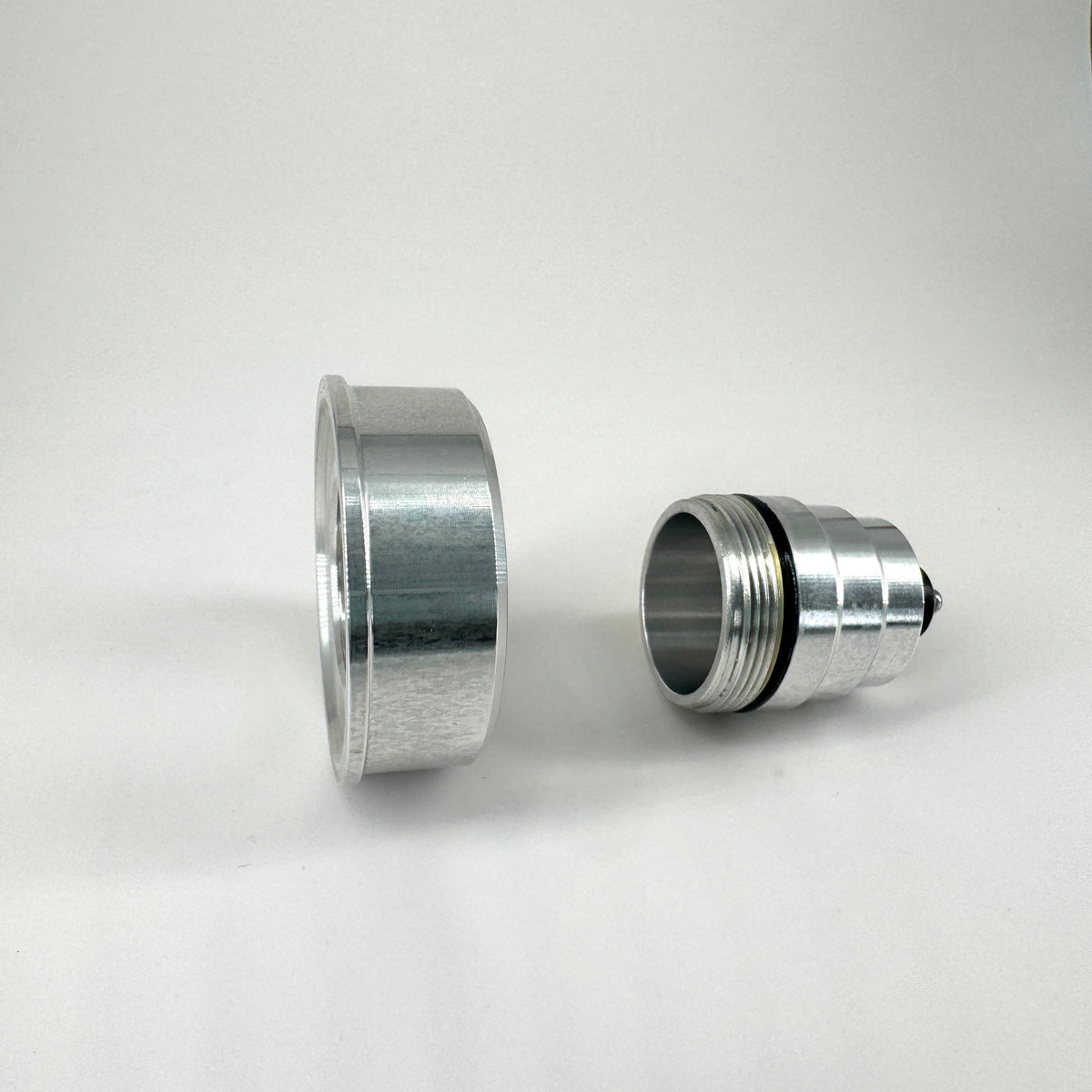

  4. Disassemble the Adapter - It screws apart into two pieces.

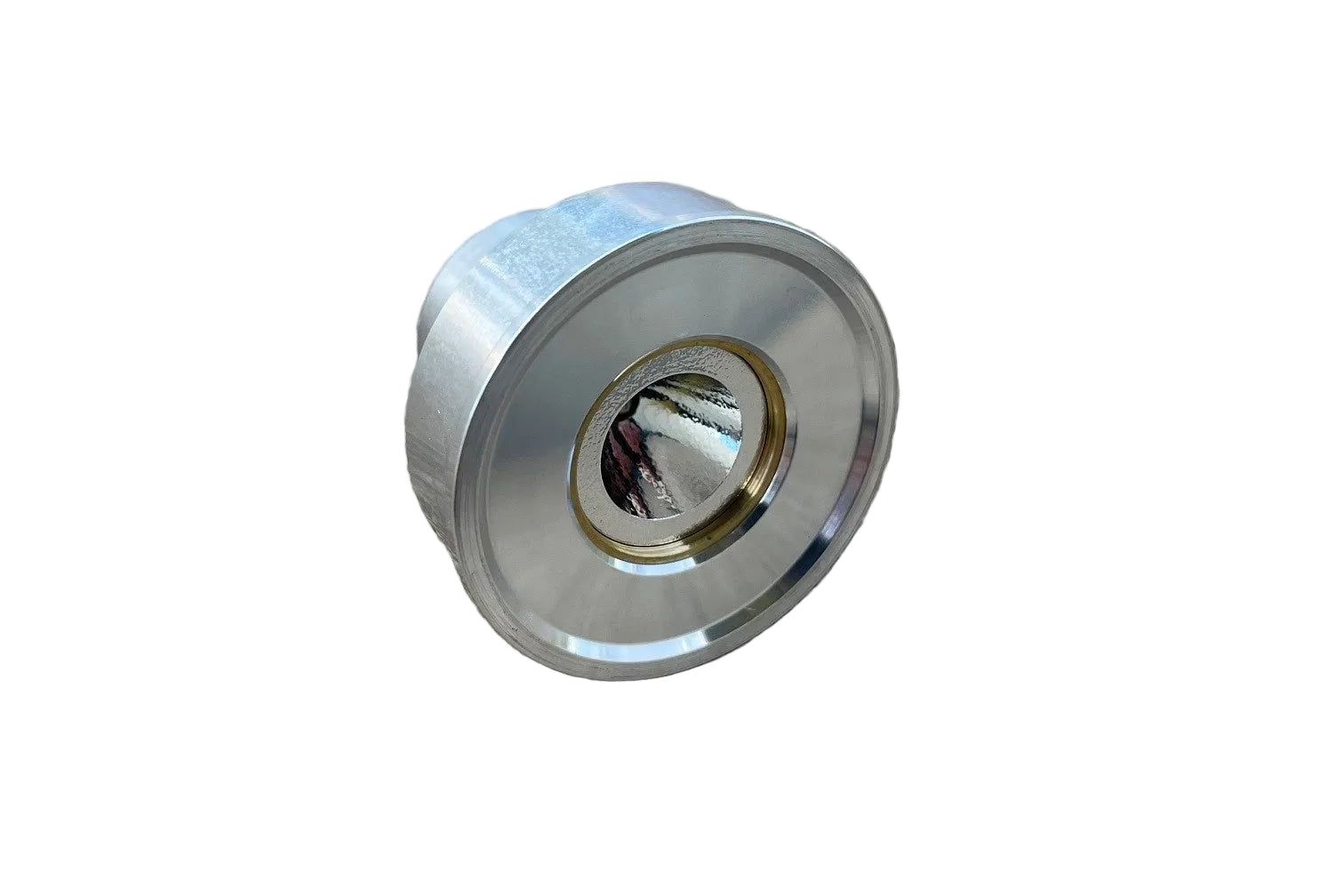

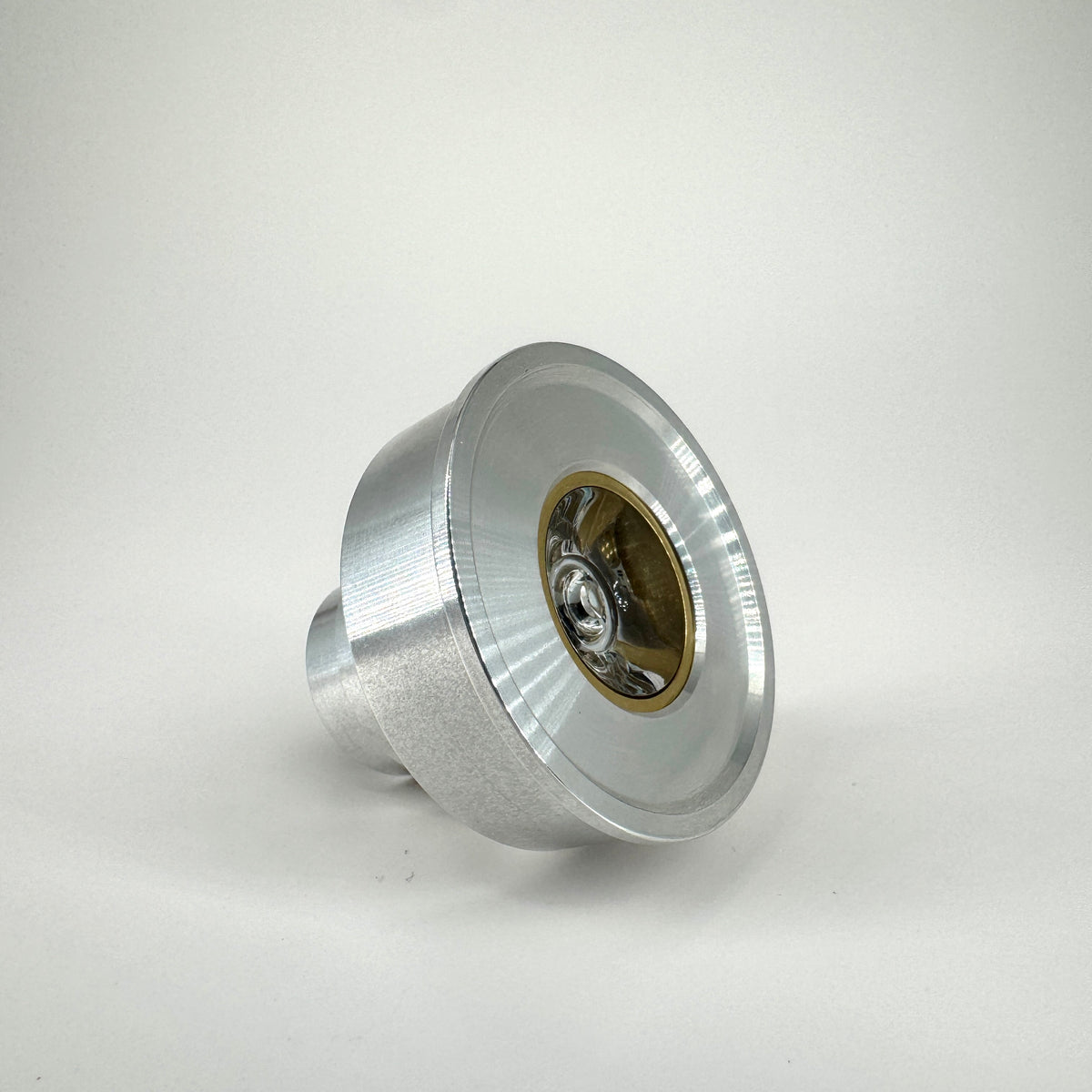

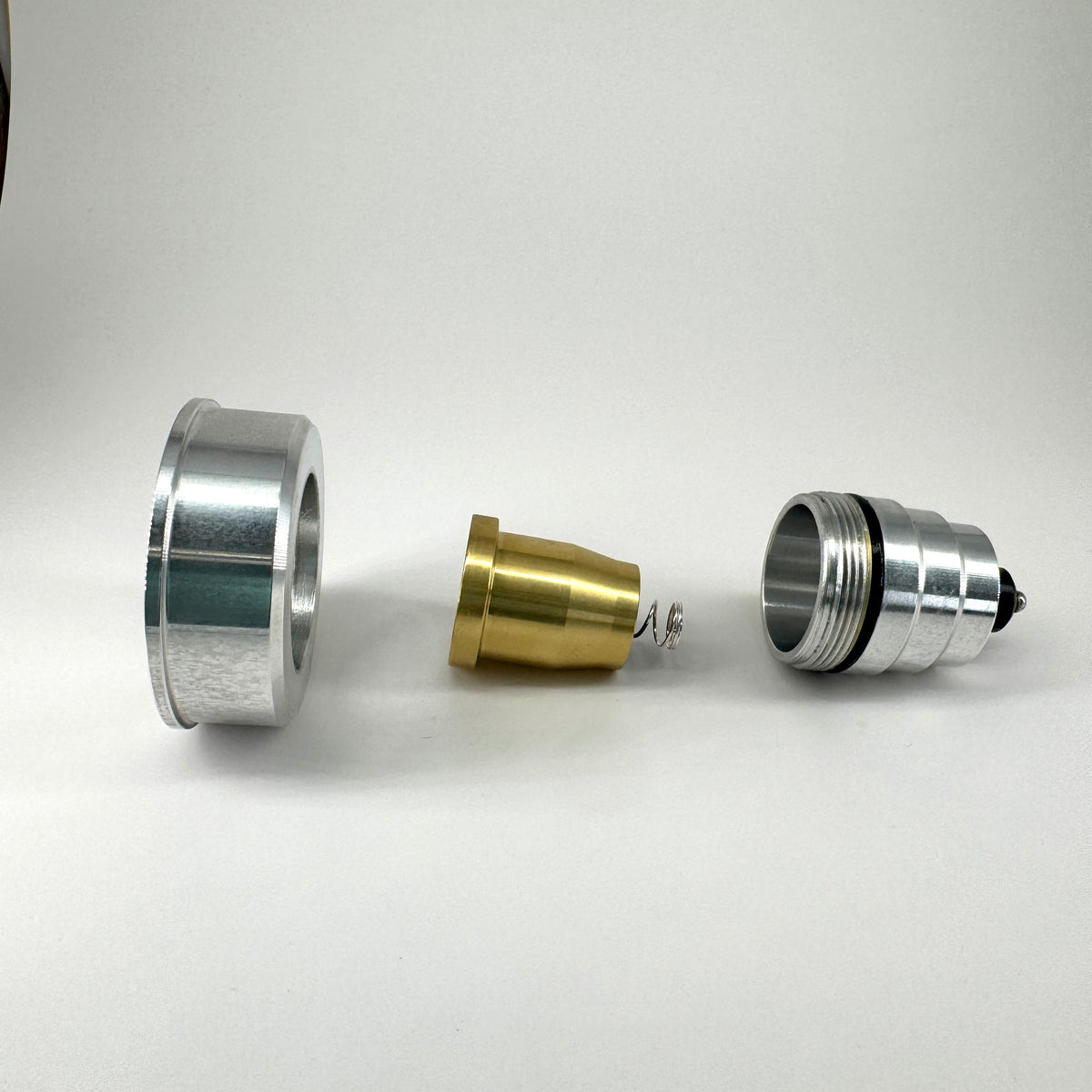

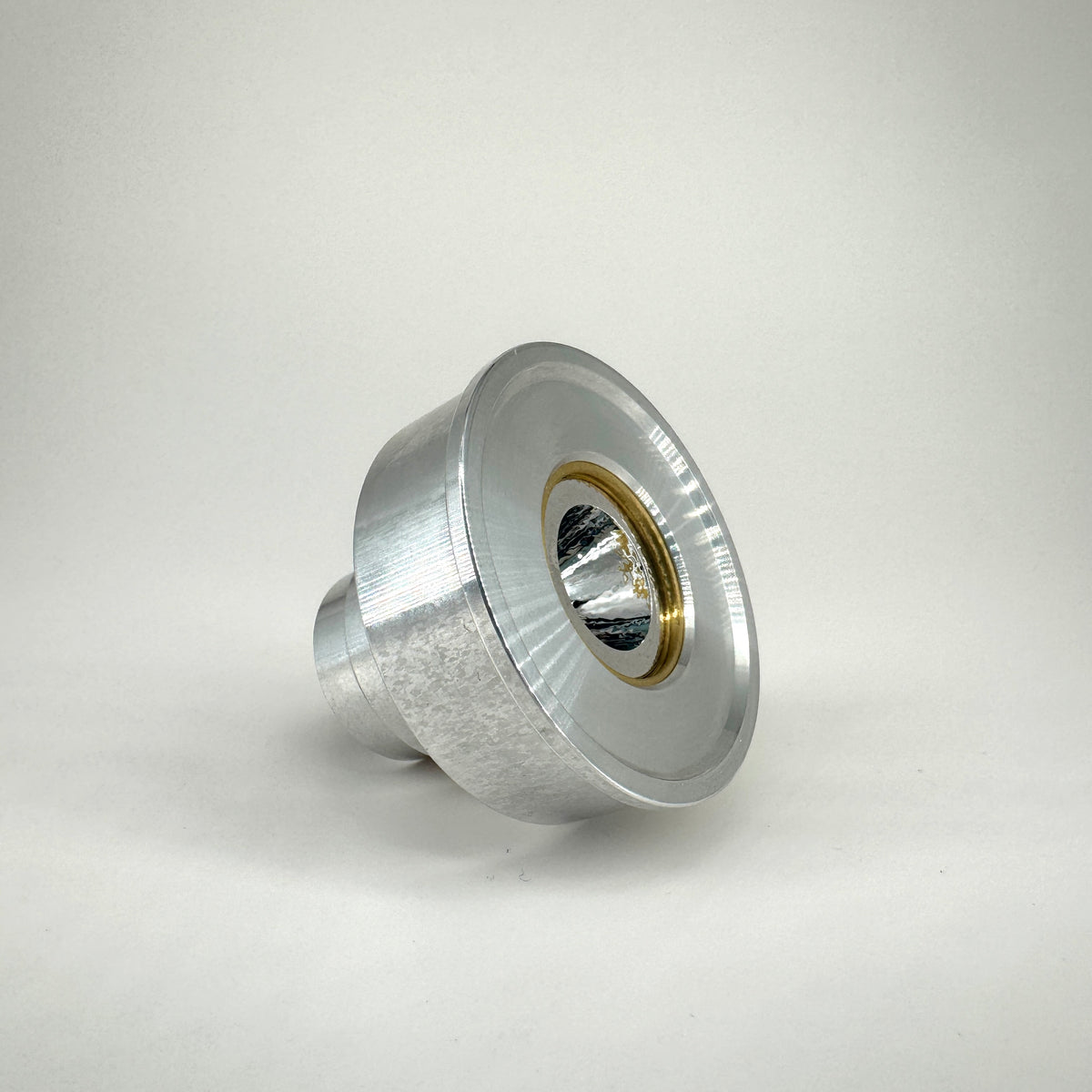

  5. Place the brass dropin between the two halves and screw back together.

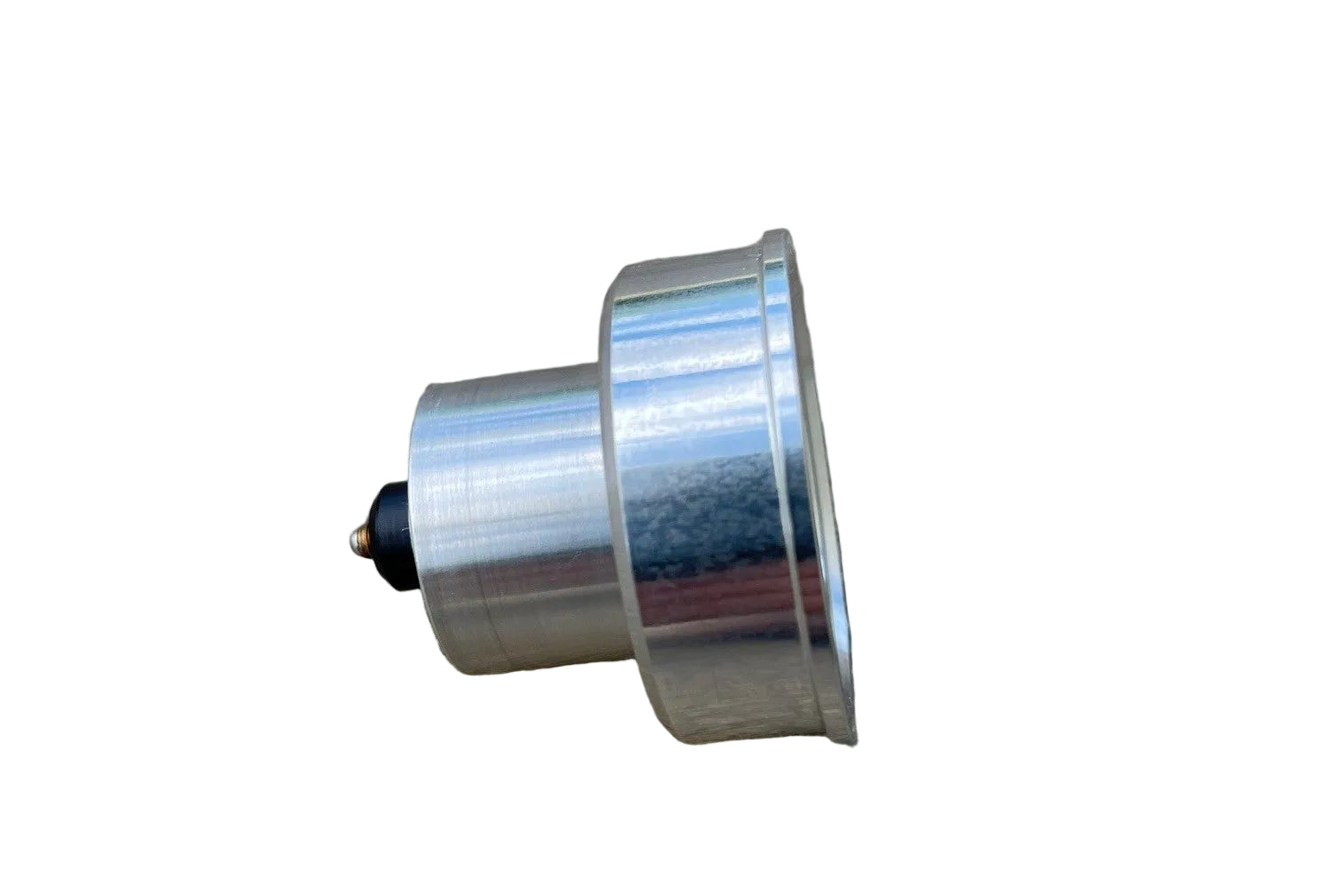

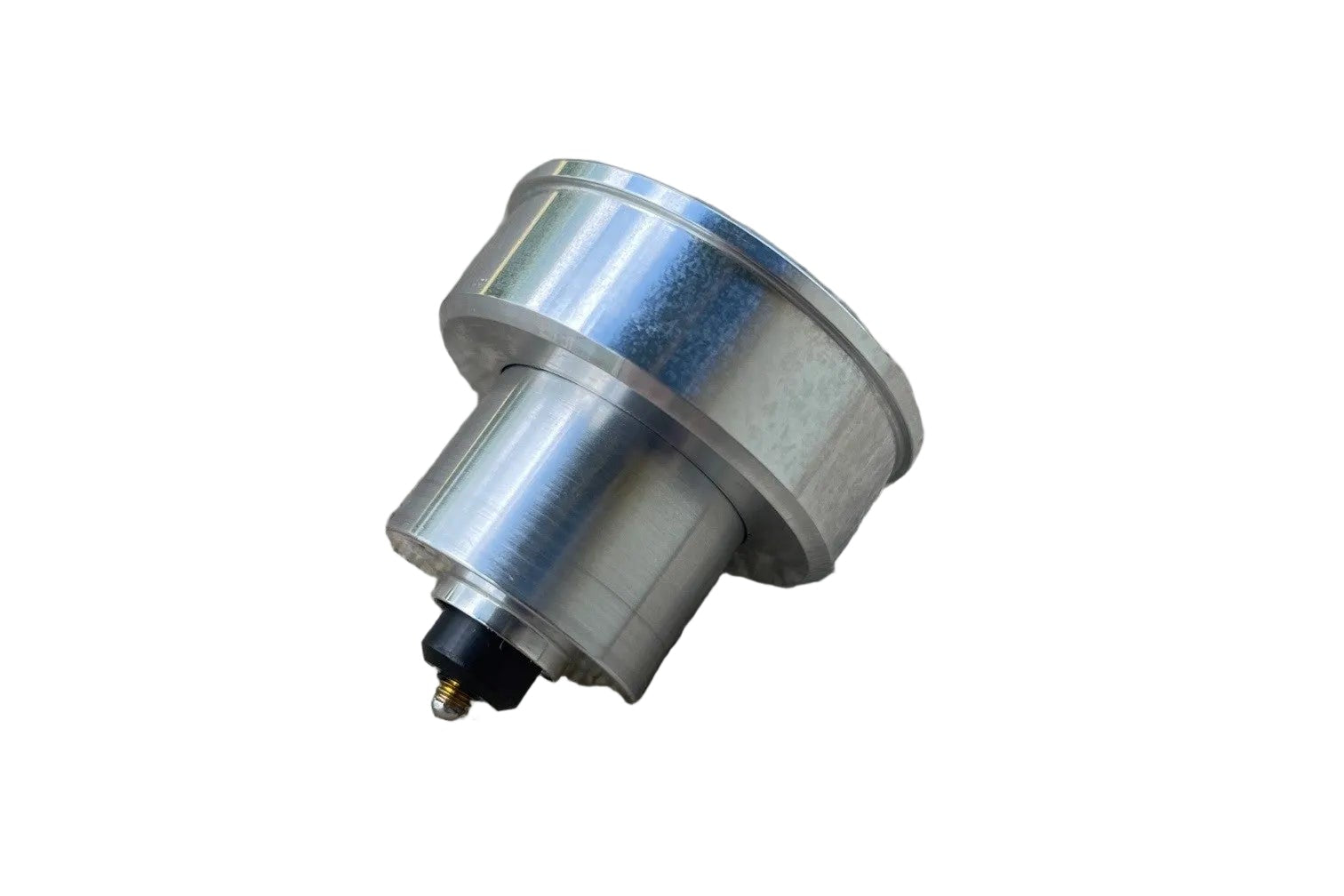

  6. Place the assembled Adapter into the head and screw the bezel (with lens and O-ring) back onto the head with the Adapter in the Head.

  7. Remove the bulb and collet from the stem in the Maglite body. Leave the collet off.

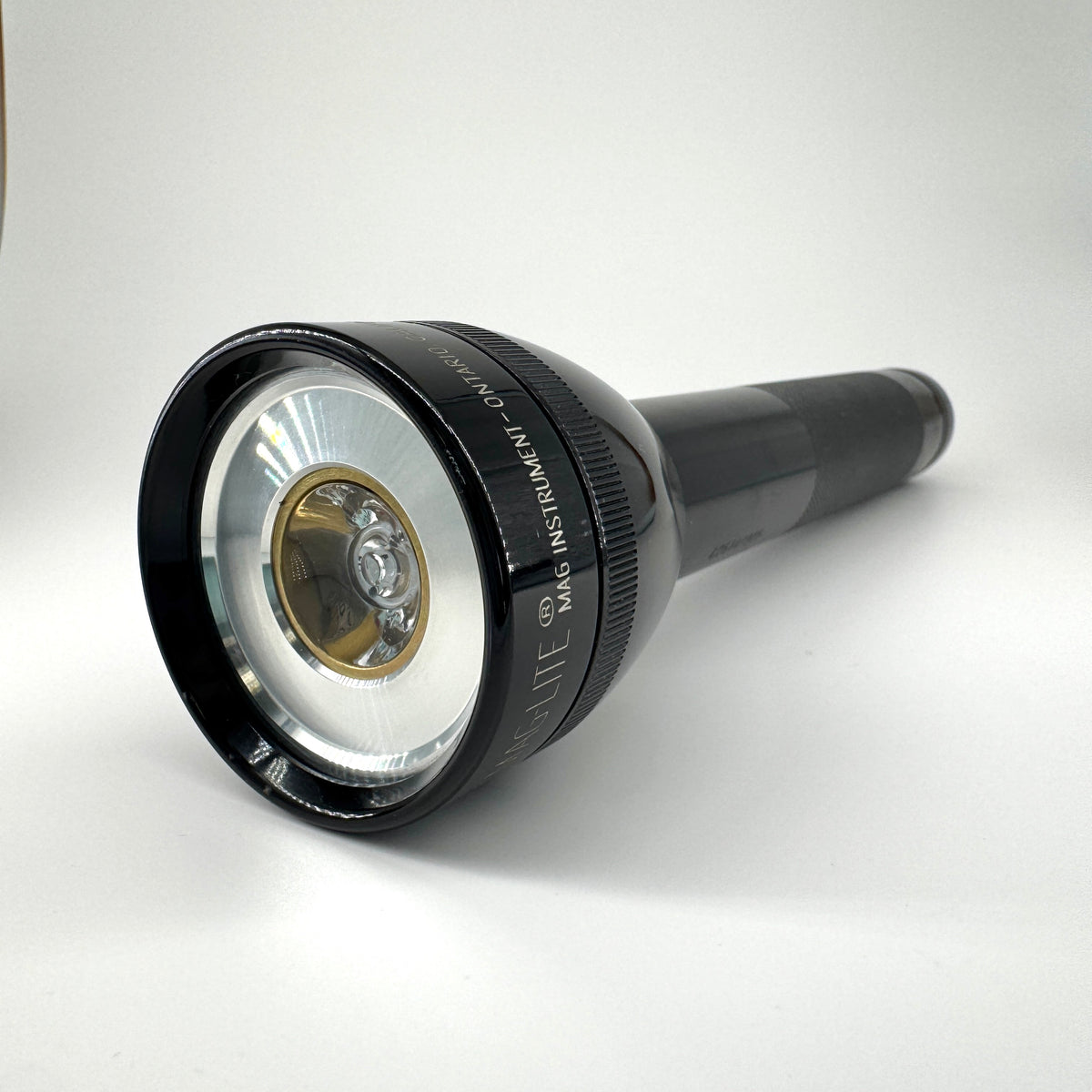

  8. Screw the reassembled Maglite head (containing the assembled Adapter) back onto the body. Screw it on far enough to cover the body O-ring. It is not necessary to crank it down tight.

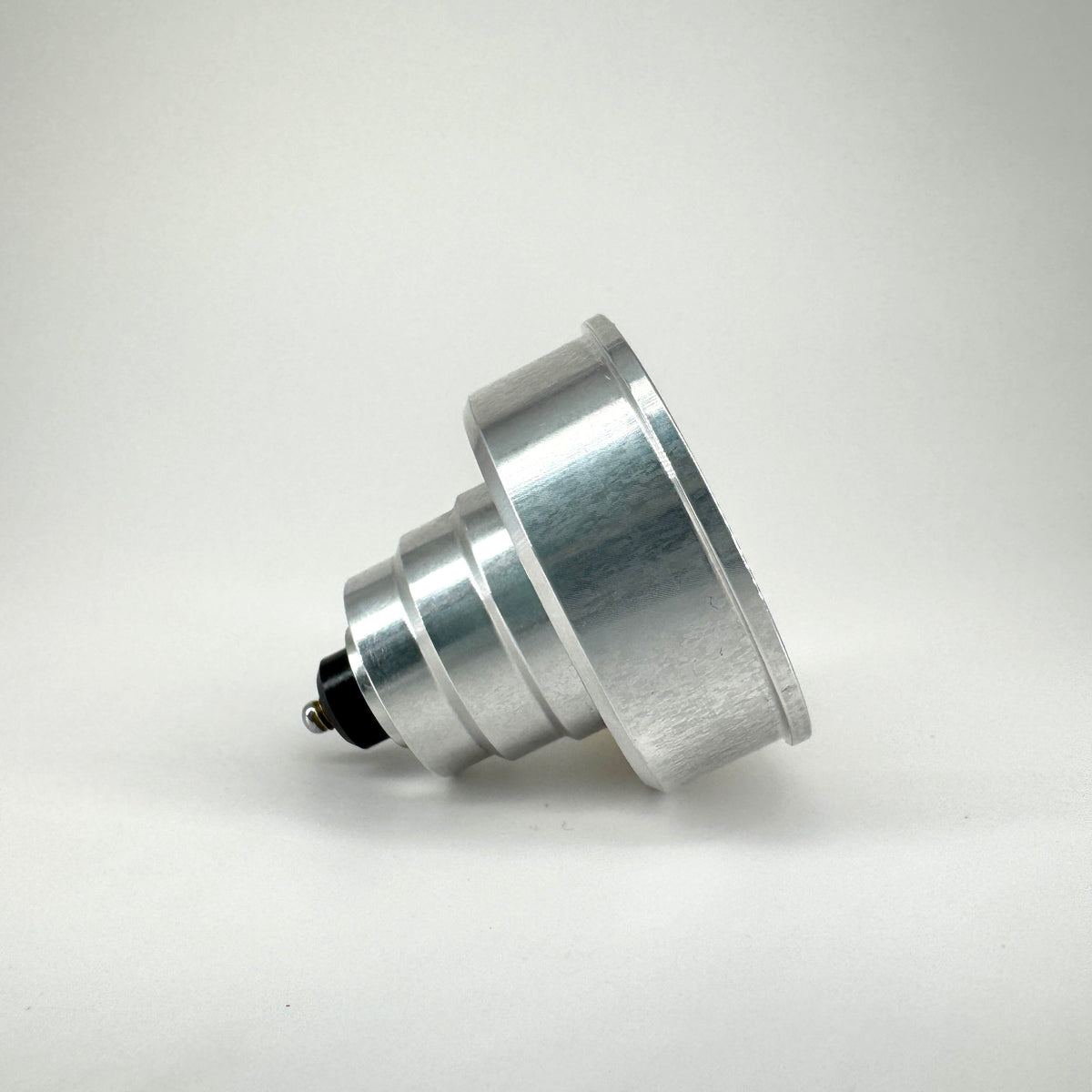

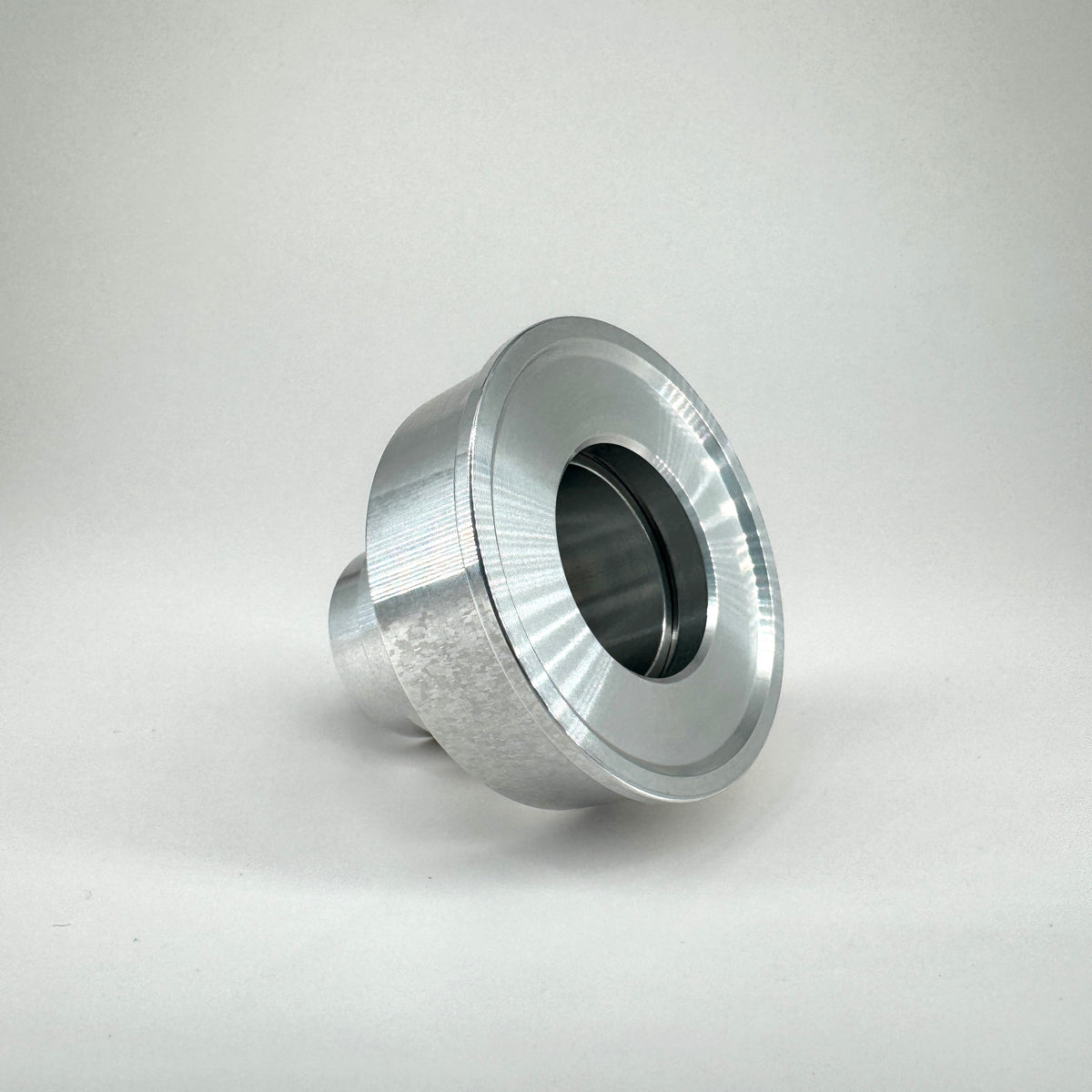

The Adapter is constructed of CNC machined structural aircraft aluminum.  Outputs and runtimes are listed in the tables below. It will NOT fit the Maglite ML25 flashlight.

2D CELL MAGLITES

DROPIN

 APPROX OUTPUT at 3V APPROX CURRENT DRAW at 3V APPROX DISTANCE at 3V APPROX RUNTIME on ALKALINE BATTERIES

M31 3-volt Dropin

DO NOT Use with 2x 18650 Adapter

 350 lumens 1300ma 50-75 yards (5000 candela)

2D = 2.5+ hrs

2C = 1+ hrs

M31W 3-volt Dropin

DO NOT Use with 2x 18650 Adapter

 300 lumens 1300ma 50-75 yards (5000 candela)

2D = 2.5+ hrs

2C = 1+ hrs



3-6 CELL MAGLITES

DROPIN

APPROX OUTPUT

 APPROX CURRENT DRAW  APPROX DISTANCE at 4.5V-9V APPROX RUNTIME on ALKALINE BATTERIES
M61

450-500 Lumens at 4.5V-9V

 1100-700 mah at 4.5V-9V 75-100 yards (6000 candela)

3D = 4+ hrs Each Additional Cell Will Add About 2 hrs Additional Runtime

Runtimes are reduced by approx 1/2 for C Size
M61N 400-450 Lumens at 4.5V-9V 1100-700 mah at 4.5V-9V 75-100 yards (5500 candela)

3D = 4+ hrs Each Additional Cell Will Add About 2 hrs Additional Runtime

Runtimes are reduced by approx 1/2 for C Size
M61W 400-450 Lumens at 4.5V-9V 1100-700 mah at 4.5V-9V 75-100 yards (5500 candela)

3D = 4+ hrs Each Additional Cell Will Add About 2 hrs Additional Runtime

Runtimes are reduced by approx 1/2 for C Size



SPECIFIC SETUPS FOR HIGH POWER IN 4-6 CELL MAGLITES. IT IS SUGGESTED TO USE ONE OF OUR LI-ION 2X 18650 BATTERY ADAPTERS FOR THESE SETUPS.

DROPIN APPROX OUPUT at 6V-9V APPROX CURRENT DRAW at 6V-9V APPROX DISTANCE at 6V-9V APPROX RUNTIME on ALKALINE BATTERIES
M61HOT V2 800 Lumens at 6V-9V  1400 - 900 mah at 6V-9V 150-200+ yards (33,000 candela)

4D = 2+ hrs

5D = 2.5+ hrs

6D = 3.5+ hrs

Runtimes are reduced by approx 1/2 for C Size
M91B 1000 lumens 2000-1400 mah 75-100 yards (8500 candela)

4D = 1.5+ hrs

5D = 2+ hrs

6D = 2.5+ hrs

Runtimes are reduced by approx 1/2 for C Size
M91BN 950 Lumens 2000-1400 mah 75-100 yards (8500 candela)

4D = 1.5+ hrs

5D = 2+ hrs

6D = 2.5+ hrs

Runtimes are reduced by approx 1/2 for C Size
M91BW 950 Lumens 2000-1400 mah 75-100 yards (8500 candela)

4D = 1.5+ hrs

5D = 2+ hrs

6D = 2.5+ hrs

Runtimes are reduced by approx 1/2 for C Size
M91T 1000 Lumens 2000-1400 mah 150-200+ yards (38,000 candela)

4D = 1.5+ hrs

5D = 2+ hrs

6D = 2.5+ hrs

Runtimes are reduced by approx 1/2 for C Size



All of the Dropins (except the M61HOT and M91T) utilize a custom orange peel reflector designed by Don McLeish.  The reflector offers a very nice balance between throw and spill.  It is an outstanding room lighter and short to medium spotter.

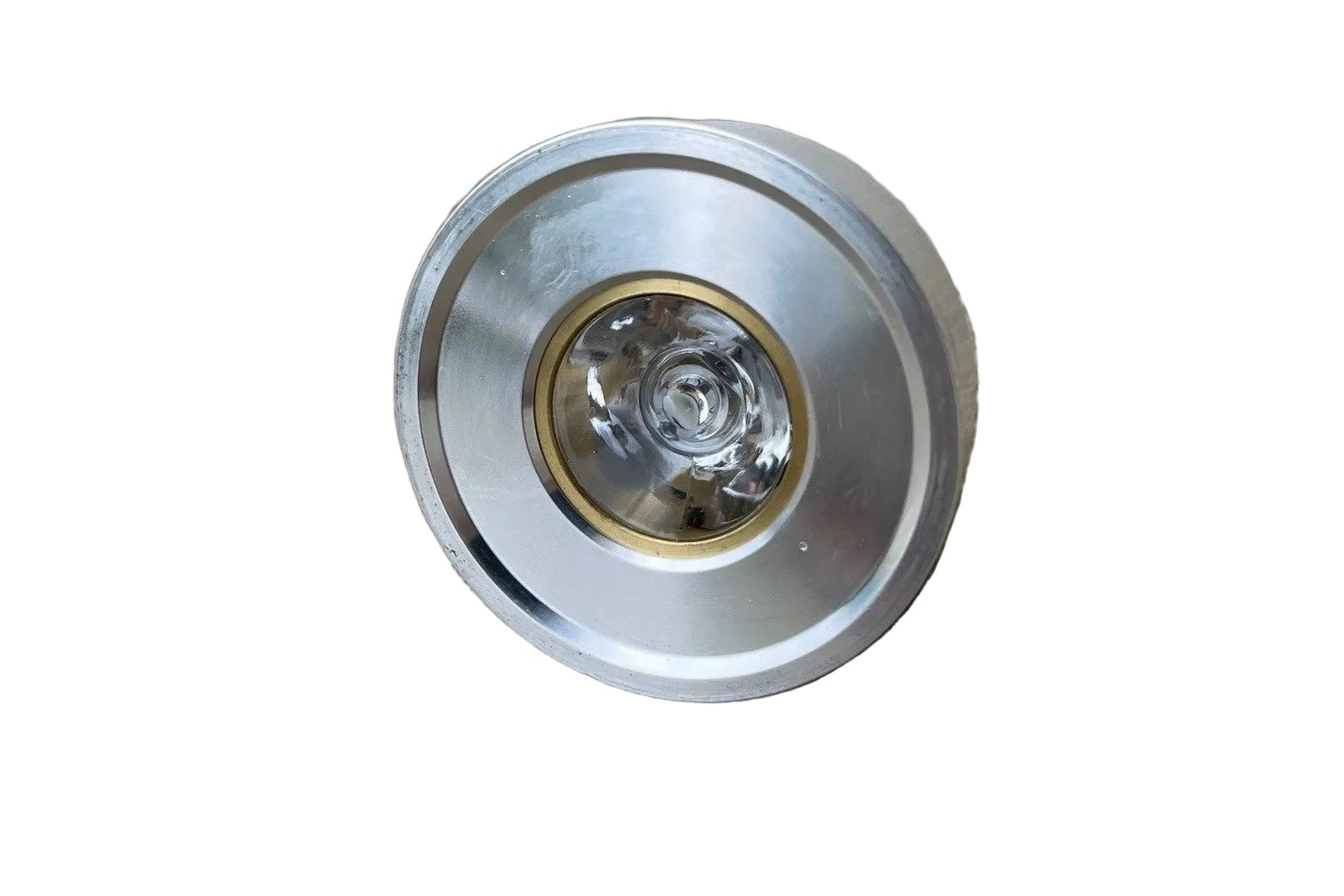

The M61HOT and M91T utilize a tightly focused optic.

The M61 LED is a White (5700K) Luminous SST-20, Neutral White (4000K 95CRI) Luminous SST-20, or Warm White (3000K 95 CRI) Luminous SST-20.

The M91 LED is a Cool White (6200K) Cree XP-L, a Neutral White (4000K) Cree XP-L, or a Warm White (3000K) Cree XP-L.

The M61HOT and M91T LEDs are a Cool White (6200K).

If you have any questions please feel free to contact me at gene@malkoffdevices.com

WARNING: This light is capable of causing eye damage at close range. Please use the light responsibly!!!

1.  THESE ADAPTERS DO NOT FIT OLDER MAGLITES WITHOUT A "D" OR "C" AS THE FIRST CHARACTER OF THE SERIAL NUMBER LOCATED OPPOSITE THE SWITCH!!!

2.  DO NOT USE A SINGLE LITHIUM  RECHARGEABLE CELL WITH M31 DROPINS.  YOU WILL DESTROY THE DROPIN!!!

3.  WARNING:  DO NOT RUN THE 2 CELL DROP-INS ABOVE THE RATED SPEC OF 3.2 VOLTS, DOING SO WILL DESTROY THE POWER CIRCUITRY.

4.  These adapters will Not Work in Maglite LED Flashlights without a user removable light bulb.  Please check to see if your  flashlight has a user removable light bulb before purchase.

5.  If You Plan to Use Lithium Batteries:  Use Only Quality Batteries from Trusted Sources.  Lithium Primary and Li-ion Rechargeable Batteries are Inherently Volatile and Dangerous to Store and Use.  All Lithium Batteries Introduce the Risk of Fire, Burns, and Explosions.  You Assume the Responsibility of Educating Yourself About Their Use and Storage Before Purchase!  If You are Uncomfortable With This, Do Not Purchase This Light!
